Atlas TruPattern™

A complimentary service from Atlas for projects using ACFoam® CrossVent or ACFoam® Nail Base.

Every roof is different; every job is different. Atlas TruPattern provides a project-specific fastening pattern based on your roof’s unique conditions, including wind speed, snow load, slope, seismic factors and more. Reports are available with or without a licensed engineer’s stamp.

Each Atlas TruPattern™ report includes:

  • A comprehensive, job-specific fastening pattern report
  • Fastener requirements per 4' × 8' board
  • Identification of roof zones and corresponding fastening patterns
  • Project-specific data and supporting calculations

ACFoam® CrossVent® TruPattern™
Request Form

Contact Information

Project Information

The project information will appear on the calculations exactly as provided. Please indicate if the calculations require an engineer's seal for the jurisdiction where the project is located and select the applicable ASCE version for the calculations.

Engineer's seal required?

ACFoam® CrossVent® Assembly Information

*If applicable.

*If applicable.

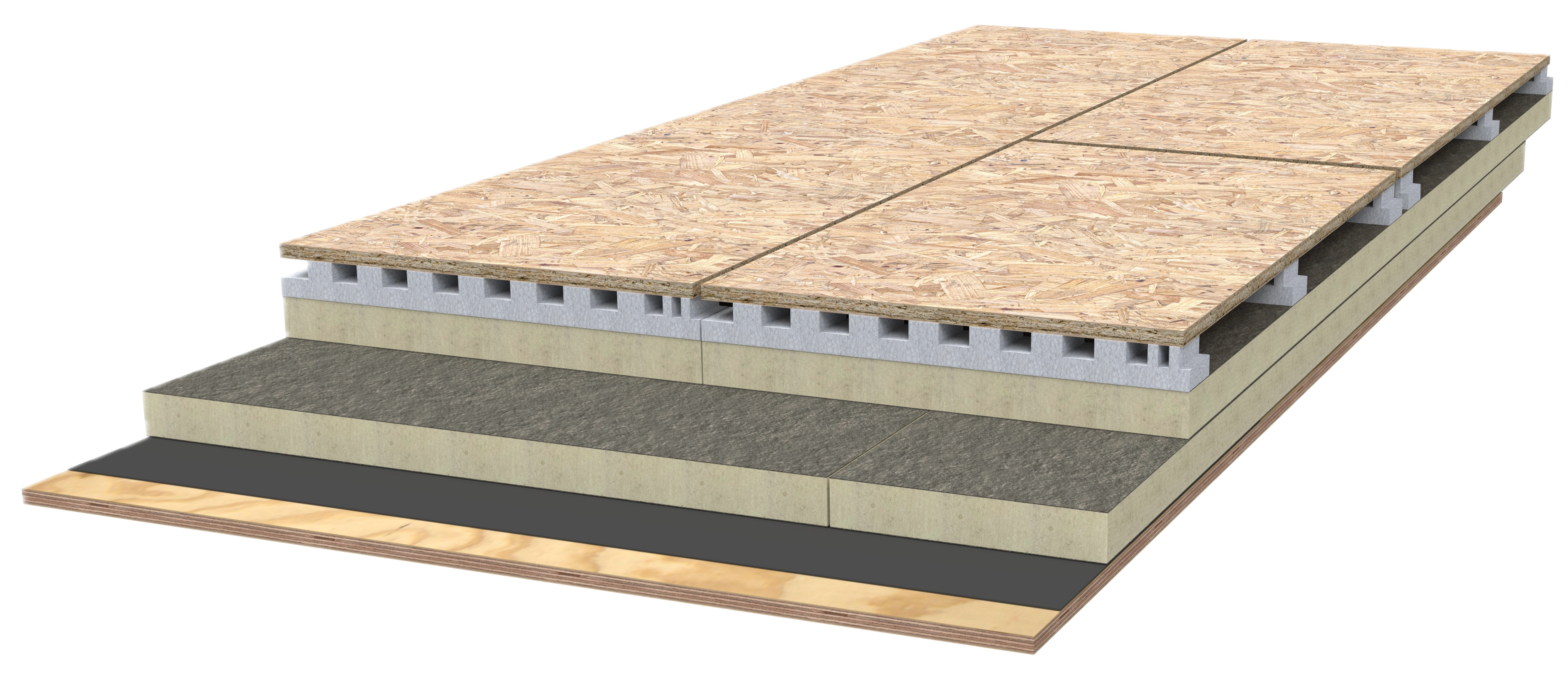

Exploded ACFoam CrossVent assembly layers

To minimize the effect of thermal bridging, and the impact of moisture/air flow into the system, Atlas recommends installing a multi-layer insulation system using a base layer of ACFoam® roof insulation.

Building Geometry

Design Criteria

The Average snow load shall be taken as the maximum weighted average of the loads imposed on each continuous roof slope considering the effects of drifting and sliding snow.
