Closed-cell polyisocyanurate (polyiso) foam core integrally bonded to reflective tri-laminate foil facers on both sides. ACFoam® Supreme is offered in a variety of thicknesses, providing long-term thermal resistance (LTTR) values from 5.7 to 26.8. Available in 4ft x 8ft (1220mm x 2440mm) and 4ft x 4ft (1220mm x 1220mm) panels. Manufactured in accordance with ASTM C1289, Type I, Class 1, Grade 2 (20 psi) or Grade 3 (25 psi) and CAN/ULC 704.1 Type 2, Class 1 or Type 3, Class 1.
Applications

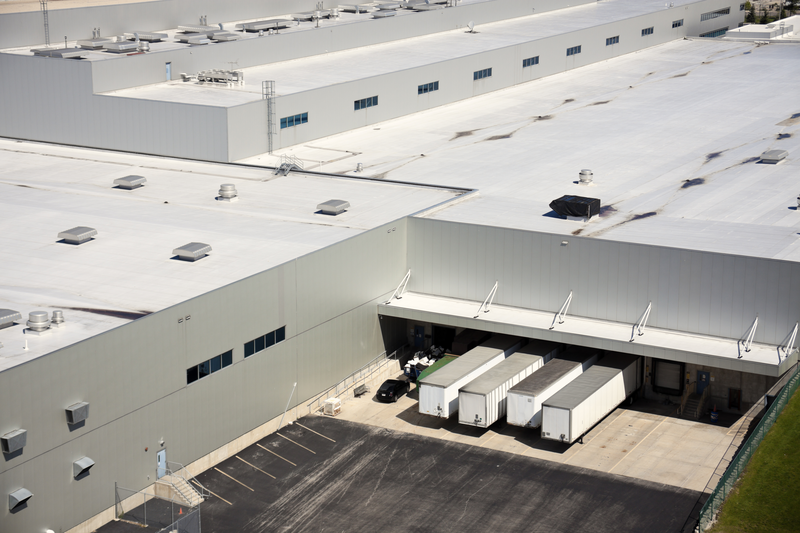

Manufactured and tested for use in new and re-roofing applications. ACFoam Supreme roof insulation shall be installed over the roof deck. ACFoam Supreme is typically specified for cold storage and metal building applications. ACFoam Supreme is used in standing seam metal roof systems as well as mechanically attached and ballasted single-ply membrane systems. Refer to roof cover manufacturer, FM Approvals® RoofNav and UL Product iQ® for additional application details. Should not be used in hot asphalt, torch-applied or adhered roofing systems.
Also available in Non-Halogenated formulation.
Product Highlights
-
LTTR values from 5.7 - 26.8
-
Available in 4'x4' or 4'x8' panels
-
Available in 20 or 25 psi
-
Responsibly manufactured with zero CFCs, HCFCs, and HFCs
-
Zero ozone depletion potential (ODP) and virtually no global warming potential (GWP)
-
Contains between 11.5% and 13.7% recycled materials by weight
